RUN control

This section is only for experts.

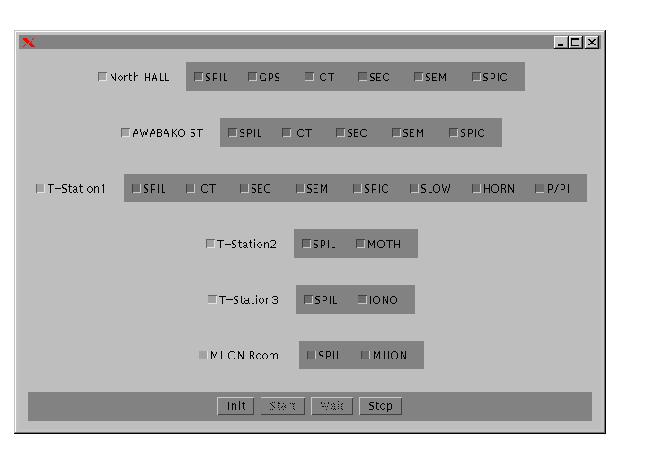

Figure 2: Run Control of Beam line DAQ

Run is controlled by the Run-Control program which name is Control.class. Control panel have theses buttons.

• Station ON/OFF
  This check box can enable / disable daq station.
• Monitor ON/OFF
  This check box can enable / disable each monitors.
• Init
  This button initialize of DAQ.
• Start
  This button start DAQ.
• Wait
  This button pause DAQ. When the Start button is pushed,run will start.
• Stop
  This button stop DAQ. All processes are ended.
