Official plots from SK, Jan. 2004
Click here to obtain ps file.

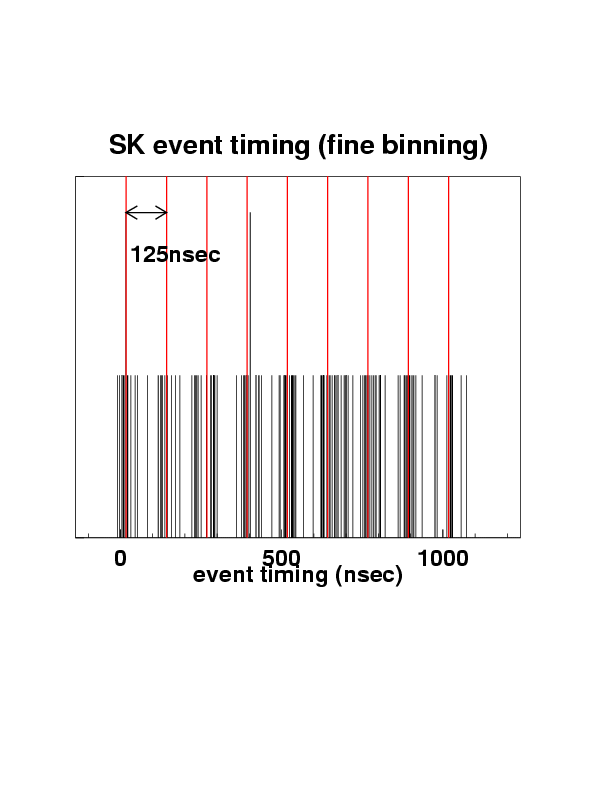

page 1, K2K event timing observed in Super-K. K2K-I and K2K-II
are combined and all events in 32kton(all inner volume)
are filled.

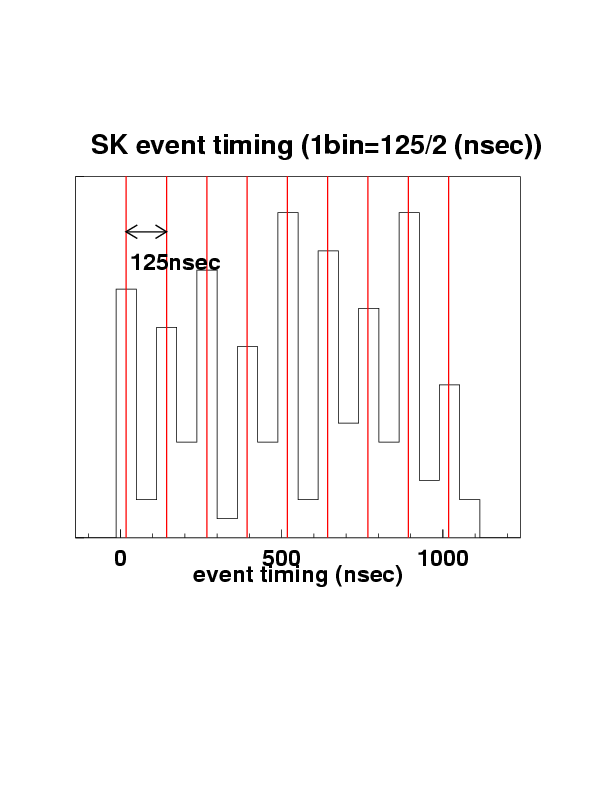

page 2, Same as previous one except binning size is 125/2 nsec that
is a half of intervals of two bunches.

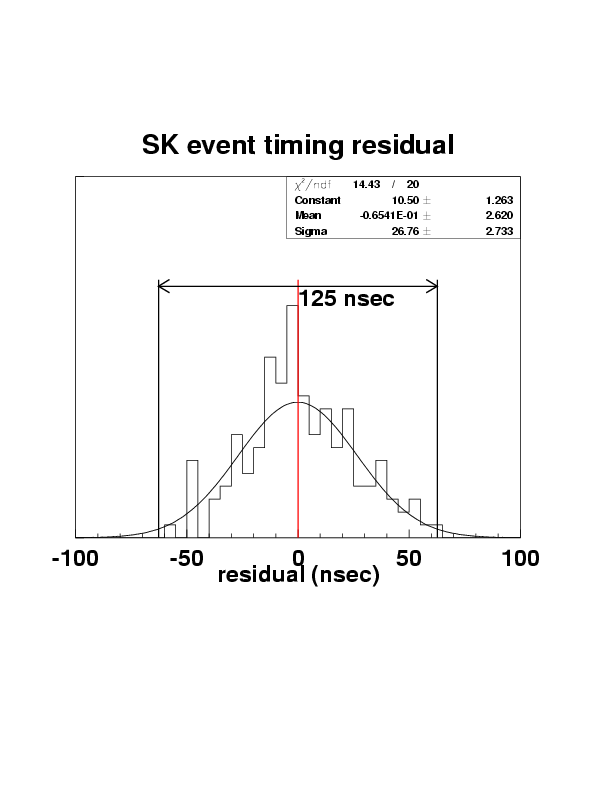

page 3, Residual of K2K-SK event timing relative to neutrino beam bunches.
Timing correlation is clearly seen and a sigma is obtained
as about 30nsec.
